Configuring Data Loader Default Settings



To configure the look and feel of the Data Loader window you can set several default options.

To set these options please click on the Options buttonoptions button icon on the Data Loader toolbar.

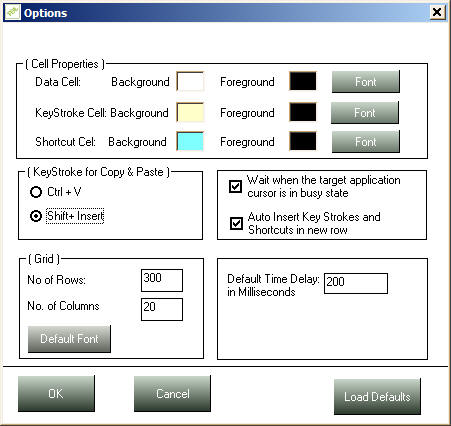

On clicking this button you will be presented the options window as shown below



data loader options window





You can change the color of sheet, fonts for several column types, and other options using this window. Below are the details of each settings.



Options window has three sections





Cell Properties



To Change the background and / or foreground color of Data Cells (i.e. cells which contains the data to be entered in the target application fields)  you can click the Background Color rectangle beside Data Cell row for changing background color, Foreground Color rectangle for changing the foreground color of text. To change the font type, size you can click the Fonts button



To Change the background and / or foreground color of Keystrokes Cells (i.e. cells which contains keystrokes like "\{TAB}" , "\{ENT}" etc)  you can click the Background Color rectangle beside Keystroke Cell row for changing background color, Foreground Color rectangle for changing the foreground color of text. To change the font type, size for keystroke columns you can click the Fonts button



To Change the background and / or foreground color of Shortcut / Command Cells (i.e. cells which contains shortcuts / commands like "*SP" etc)  you can click the Background Color rectangle beside Shortcut Cells row for changing background color, Foreground Color rectangle for changing the foreground color of text. To change the font type, size for Shortcut columns you can click the Fonts button



Keystrokes for Copy & Paste



To paste the data entered in Data Cells, Data Loader uses the Windows paste keys. The default key used is Control V (CTRL+V). If you want you can change it to Shift + INSERT. This might be necessary sometimes when target application doesn't recognize the Ctrl+v keystroke.  Click on the appropriate option to set the preferred paste keys for your load





Grid



To increase or decrease the number of rows and columns in a data loader sheet you can enter the desired values in the provided text boxes. Remember that data loader automatically increases the number of rows as you enter data into the last rows. So it might not be necessary to set these values.


Also please note that you cannot change the number of columns if you are editing Forms Playback (.fdl) file.



Macro Loading options



Wait when target application cursor is in busy state



 In macro loading the data loader is not able to know the status of the target application whether it is ready to accept the data or not or it's busy in processing the data. Because of this the load gets haywire and some fields gets skipped. To control this behavior and make the loading as synchronized as possible, you can check this Checkbox.



Usually when the target application is busy in processing the data (i.e. saving a record or fetching data from database) the cursor is changed to Hour glass and data loader can interpret this to know when to send data and when to stop.



Checking this checkbox makes data loader wait till the cursor is in busy state. It's recommended to check this checkbox to control the load





Auto Insert Keystrokes and Shortcuts in New Row


You can check this checkbox to automatically copy the keystrokes and shortcuts commands when entering data into new rows. This takes burden off from the user in preparing the load



Default Time Delay



 You can enter a value (0 to 65,000 milliseconds) in this textbox. This is a global wait period data loader waits after processing each cell.
