Simulating Mouse Clicks



LEFT Mouse Click



In Data Loader you can simulate Mouse clicks in the target applications by entering *MC(X,Y) OR *ML(X,Y) in a cell.



X = X - Screen Coordinate
Y = Y - Screen Coordinate



For Example

If you enter *MC(430,240) or *ML(430,240) then Data Loader will simulate a Left Mouse Click on the screen at the 430,240 coordinate while loading.



RIGHT Mouse Click



Similarly you can also simulate a Right Mouse Click by entering *MR(X,Y) in a cell.


Where



X = X - Screen Coordinate
Y = Y - Screen Coordinate



For Example

If you enter *MR(320,796) then Data Loader will simulate a Left Mouse Click on the screen at the 320,796 coordinate while loading.





To capture exact screen coordinates  you can make use of our Get Coordinate feature.

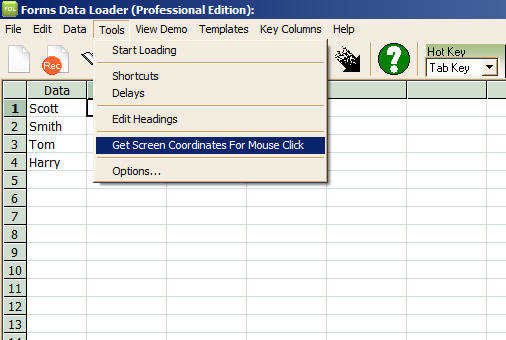

You can access the Get Screen Coordinate Tool by clicking on the Tools Menu, as shown in the picture below



enter mouse click coordinates



To use this tool, open your target application window and then select the cell in Data Loader template in which you want to enter mouse coordinates and then click on Tools >> Get Screen Coordinates For Mouse Click menu. When you click this menu Data Loader window will be minimized and you will the see the target application window. Click on the desired location in the target window where you want to simulate mouse click and then  Data Loader will capture the coordinate in the selected cell.
